Hydraulic Quick Couplings
ALCO supplied Hydraulic Quick couplings have a wide variety of designs, each tailored to a particular application or use. However, based on the valving of the coupling, hydraulic couplings generally fall into one of two groups, either Double Shut-Off or Straight-Thru. Double Shut-Off couplings are used extensively when it is important to minimize fluid loss upon disconnection. Both halves of the coupler, the body and the nipple, contain shut-off valves. These valves open automatically when the body and nipple are connected, and close automatically when the two halves are disconnected—keeping fluid loss to a minimum. ALCO supplied Straight-Thru couplings have no valves in either half and are ideal for maximum flow application. Their smooth, open bore offers the lowest pressure drop of any quick disconnect coupling, and allows them to be thoroughly cleaned. Since there are no valves in either half, fluid flow should be shut off before the coupling is disconnected.

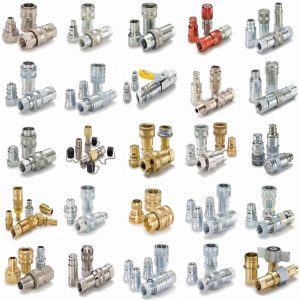

Types of ALCO Supplied Hydraulic Quick Couplings
General Purpose Couplings

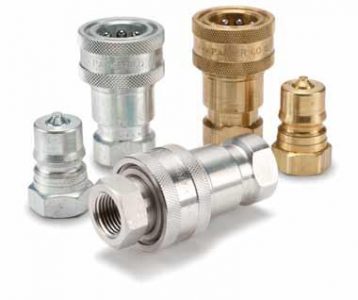

- 60 Series Couplings

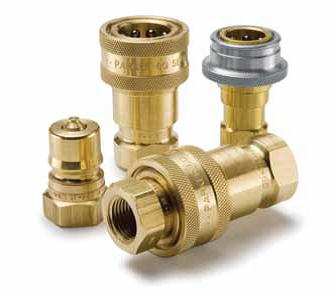

- 60 Series Steam Couplings
- 6600 Series Couplings
- SM Series Couplings
- HP Series Couplings
- 4000 Series Couplings
- 4200 Series Couplings
Non-Spill Couplings
- NS Series Couplings
- EAS/SAE Adapters
- FF/FC Series Couplings
- FEM/FEC Series Couplings
- FH Series Couplings
- FS Series Couplings
Connect Under Pressure Couplings
- 6100 Series Couplings
- 8200 Series Couplings
- 9200 Series Couplings
- 5000 Series Couplings
High Pressure Couplings

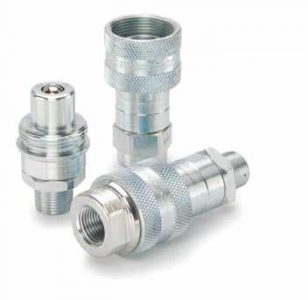

- 3000 Series Couplings
- TC Series Couplings

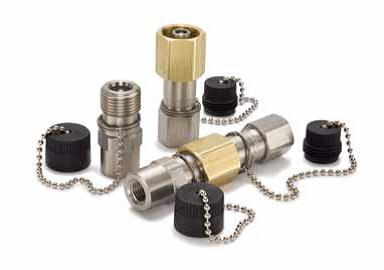

- 1141 Series Couplings
High Flow Couplings
- ST Series Couplings

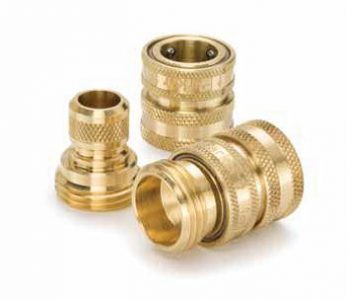

- 1163 Series Couplings
- HO Series Couplings
Mold Coolant Line Couplings
- Moldmate Series Couplings
Special Purpose – Miniature
- DM Series Couplings
For more information or to purchase available products and/or services please contact your ALCO representative at the link provided on this page
