Over View
Description

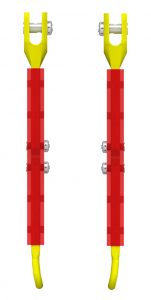

ALCO offers, supplies and stocks a truly innovative, highly engineered product in the Adjustable Bail Extensions. Adjustable Bail Extensions have customizable options for both length and tonnage that extend up to four feet in length and can be ready in as little as 10 weeks. We provide access to a comprehensive stock of specifically North American Manufactured API Spec 8C PSL 1 SR2 (-40°) Adjustable Bail Extensions.
- Engineering design to API Spec 8C
- Manufactured and Certified in North America to API Spec 8C PSL 1 SR2 (-40°)
- One of the most complete offerings in the industry for both length and tonnage
Features / Benefits
- Unique Dual-Radii pin for bail loading conforming to API specifications
- Two pickup points on the pin to accommodate either straight of offset lower bail link eye connection points
- Offset lower eye as per standard links to easily accommodate attachment to elevator
- Manufactured from North American supplied plate
- All sets come with API Certification
- Custom lengths and ratings can be designed and manufactured in as little as 7 weeks
- All sets come individually crated for ease of future transportation requirements
Contact our expert sales staff for pricing, availability and product specifications for the ALCO Adjustable Bail Extensions right for your application at the link provided on this page.
Specifications
- Manufactured to API Spec 8C PSL 1 SR2 (-40°)
- Load rating from150-Ton (133,446 dqaN) to 500-Ton (444,822 daN)
- Lengths from 8’ (2.43 m) to 18’ (.5.48 m)
- 1’ off centre extension points for variable adjustable lengths up to 4’ greater than the lowest adjustable length
